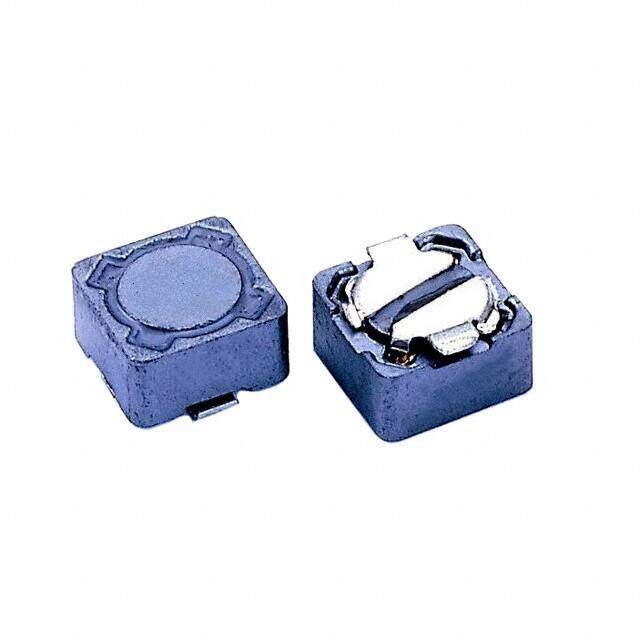

SCRH74-330

Signal Transformer
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description FIXED IND 33UH 960MA 170 MOHM
PDF
/
Inventory: 7361
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 18 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard

Technical

Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2009
Series SCRH74
Size / Dimension 0.307Lx0.307W 7.80mmx7.80mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Current Rating (Amps) 960mA
Shielding Shielded
Current Rating 960mA
Inductance 33μH
Test Frequency 1kHz
DC Resistance (DCR) 170mOhm Max
Inductance Frequency - Test 1kHz
Current - Saturation 960mA

Dimensions

Height 4.4958mm
Height Seated (Max) 0.177 4.50mm
Length 7.7978mm
Width 7.7978mm

Compliance

RoHS Status ROHS3 Compliant
