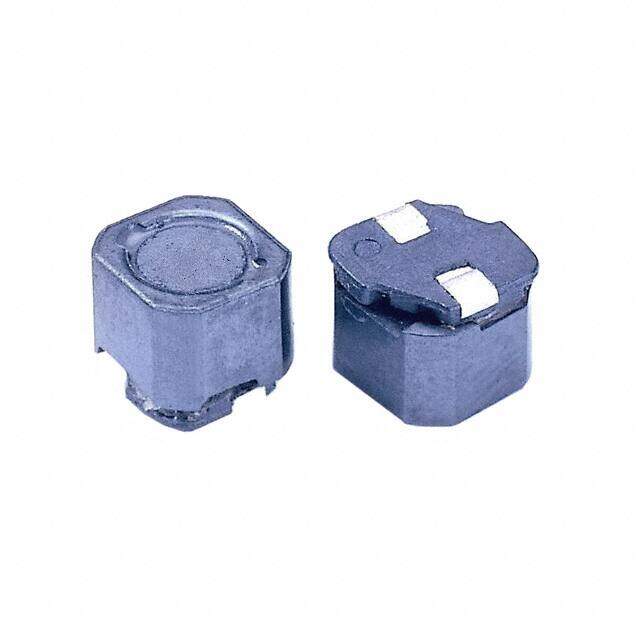

SCRH64B-331
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 330UH 230MA 2.67 OHM
PDF
/
Inventory: 931
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 6.4008mm
Length 6.5024mm
Height Seated (Max) 0.205 5.20mm
Technical
Current - Saturation 230mA
Inductance Frequency - Test 1kHz
DC Resistance (DCR) 2.67Ohm Max
Test Frequency 1kHz
Inductance 330μH
Current Rating 230mA
Shielding Shielded
Current Rating (Amps) 230mA
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Tolerance ±20%
Size / Dimension 0.256Lx0.252W 6.50mmx6.40mm
Series SCRH64B
Published 2009
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
