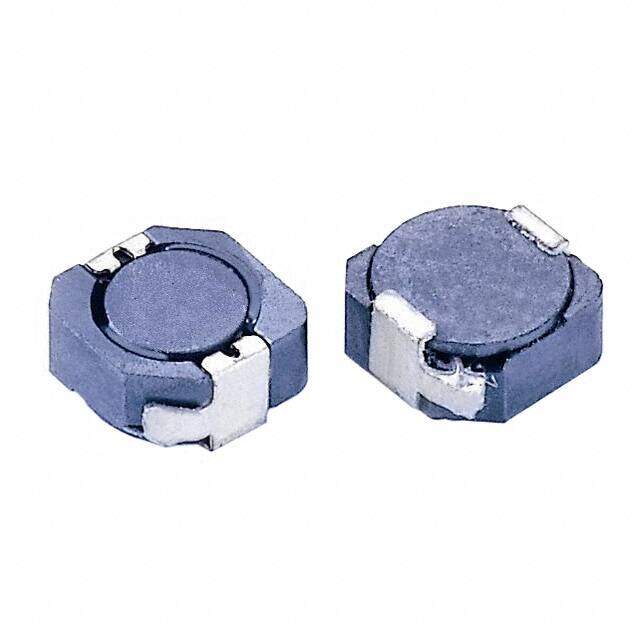

SCRH5D28R-100

Signal Transformer
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description FIXED IND 10UH 2.43A 54 MOHM SMD
PDF
/
Inventory: 3115
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Width 6.1976mm
Length 6.2992mm
Height Seated (Max) 0.118 3.00mm

Technical

Current - Saturation 1.3A
Inductance Frequency - Test 100kHz
DC Resistance (DCR) 54mOhm Max
Test Frequency 100kHz
Inductance 10μH
Current Rating 2.43A
Shielding Shielded
Current Rating (Amps) 2.43A
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±30%
Size / Dimension 0.248Lx0.244W 6.30mmx6.20mm
Series SCRH5D28R
Published 2009
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 18 Weeks
