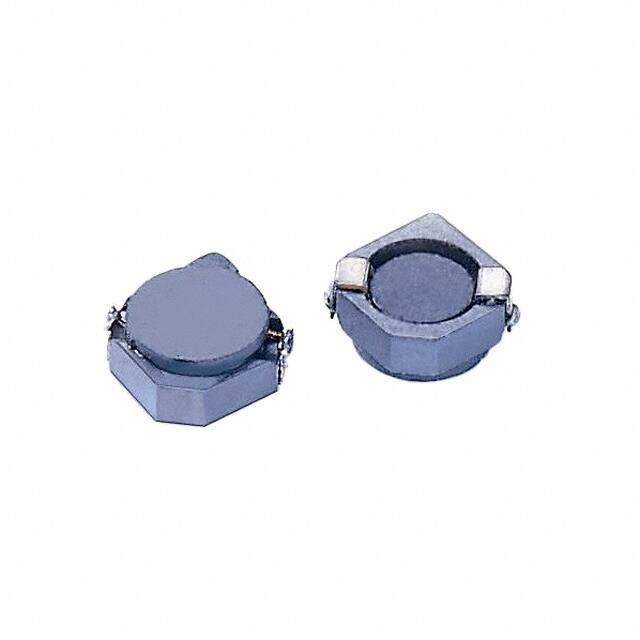

SCRH2D18-220 image
Favorite
SCRH2D18-220 image
Favorite

SCRH2D18-220

Signal Transformer
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description ROHS3Compliant Active 2009 Tape & Reel (TR) fixed air core inductor -40C~125C 100kHz 382mOhm Max 22muH
PDF
/
Inventory: 4707
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 18 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard

Technical

Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2009
Series SCRH2D18
Size / Dimension 0.126Lx0.126W 3.20mmx3.20mm
Tolerance ±30%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Current Rating (Amps) 730mA
Shielding Shielded
Current Rating 260mA
Inductance 22μH
Test Frequency 100kHz
DC Resistance (DCR) 382mOhm Max
Inductance Frequency - Test 100kHz
Current - Saturation 260mA

Dimensions

Height 2.0066mm
Height Seated (Max) 0.079 2.00mm
Length 3.2004mm
Width 3.2004mm

Compliance

RoHS Status ROHS3 Compliant
