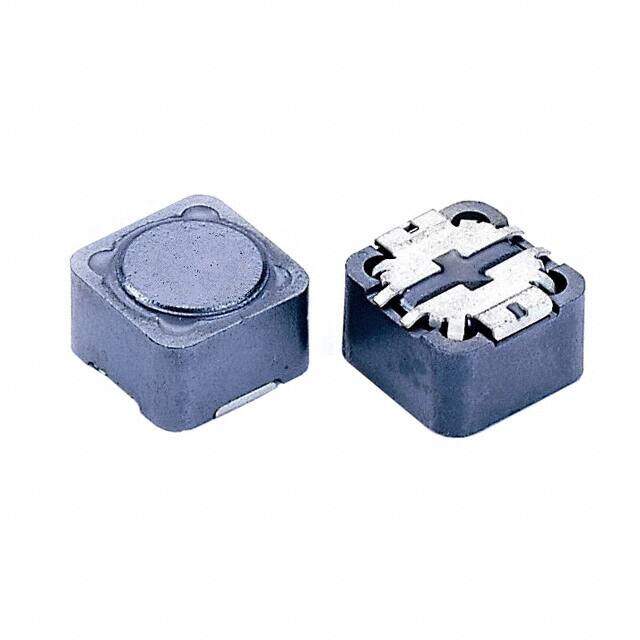

SCRH127-470
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SCRH127 Nonstandard 0.492Lx0.492W 12.50mmx12.50mm 47muH
PDF
/
Buying Options
Total Price: USD $1.15
Unit Price: USD $1.1528
≥1 USD $1.1528
≥10 USD $0.97768
≥100 USD $0.8888
≥500 USD $0.835472
≥1000 USD $0.693264
≥3000 USD $0.639936
Inventory: 1090
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2009
Series SCRH127
Size / Dimension 0.492Lx0.492W 12.50mmx12.50mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
HTS Code 8504.50.80.00
Shielding YES
Number of Functions 1
Reach Compliance Code unknown
Current Rating 2.62A
Inductance 47μH
Test Frequency 1kHz
DC Resistance (DCR) 100mOhm Max
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductance Frequency - Test 1kHz
Inductor Type GENERAL PURPOSE INDUCTOR
Current - Saturation 2.5A
Case/Size Code 4949
Dimensions
Height Seated (Max) 0.315 8.00mm
Compliance
RoHS Status ROHS3 Compliant
