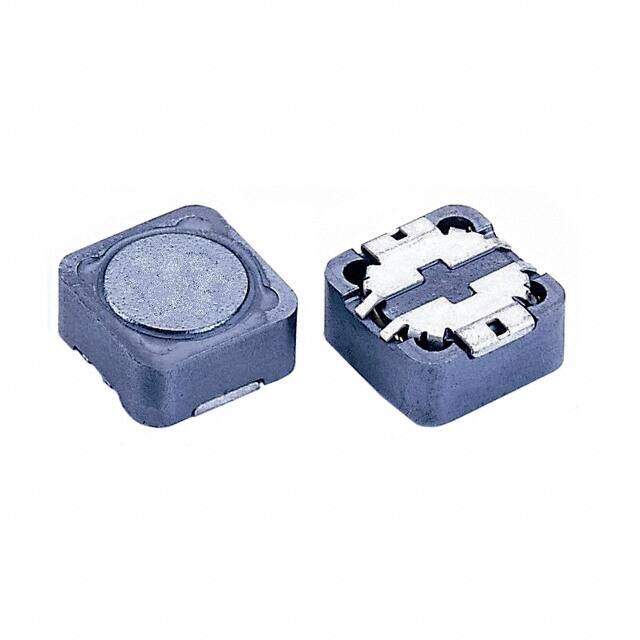

SCRH125-560 image
Favorite
SCRH125-560 image
Favorite

SCRH125-560

Signal Transformer
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description ROHS3Compliant Active 2009 Tape & Reel (TR) Fixed Inductor -40C~125C 1kHz 110mOhm Max 56muH
PDF
/
Inventory: 9867
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Width 12.4968mm
Length 12.4968mm
Height Seated (Max) 0.236 6.00mm
Height 5.9944mm

Technical

Current - Saturation 1.7A
Inductance Frequency - Test 1kHz
DC Resistance (DCR) 110mOhm Max
Test Frequency 1kHz
Inductance 56μH
Current Rating 1.7A
Shielding Shielded
Current Rating (Amps) 2.23A
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.492Lx0.492W 12.50mmx12.50mm
Series SCRH125
Published 2009
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 18 Weeks
