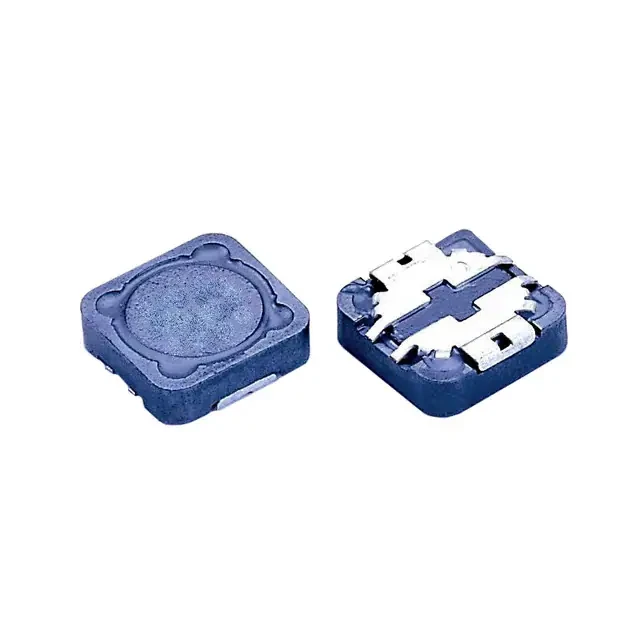

SCRH123-150
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
ROHS3Compliant Active 2009 Tape & Reel (TR) fixed air core inductor -40C~125C 100kHz 94mOhm Max 15muH
PDF
/
Inventory: 6095
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2009
Series SCRH123
Size / Dimension 0.492Lx0.492W 12.50mmx12.50mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Current Rating (Amps) 2.67A
Shielding Shielded
Current Rating 4.2A
Inductance 15μH
Test Frequency 100kHz
DC Resistance (DCR) 94mOhm Max
Inductance Frequency - Test 100kHz
Current - Saturation 4.2A
Dimensions
Height 3.81mm
Height Seated (Max) 0.150 3.80mm
Length 12.4968mm
Width 12.4968mm
Compliance
RoHS Status ROHS3 Compliant
