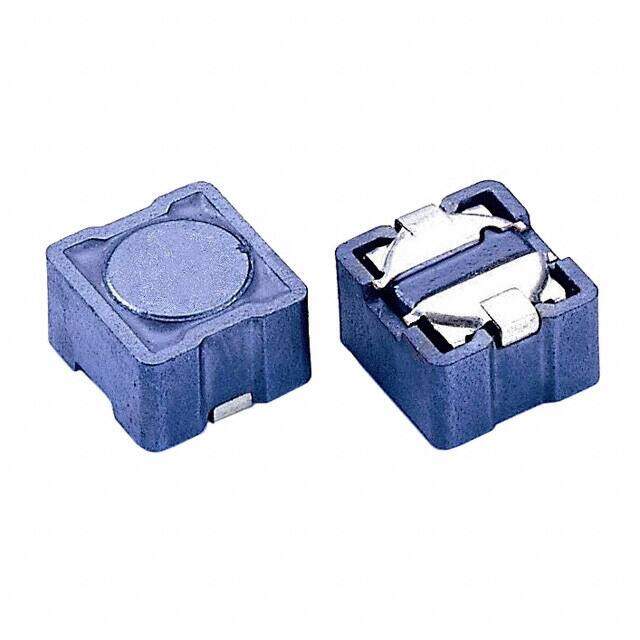

SCRH105-330
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
ROHS3Compliant Active 2009 Tape & Reel (TR) fixed air core inductor -40C~125C 100kHz 180mOhm Max 33muH
PDF
/
Inventory: 8652
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 9.1948mm
Length 10.1092mm
Height Seated (Max) 0.236 6.00mm
Height 5.9944mm
Technical
Current - Saturation 2.4A
Inductance Frequency - Test 100kHz
DC Resistance (DCR) 180mOhm Max
Test Frequency 100kHz
Inductance 33μH
Current Rating 2.4A
Shielding Shielded
Current Rating (Amps) 1.8A
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.398Lx0.362W 10.10mmx9.20mm
Series SCRH105
Published 2009
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 18 Weeks
