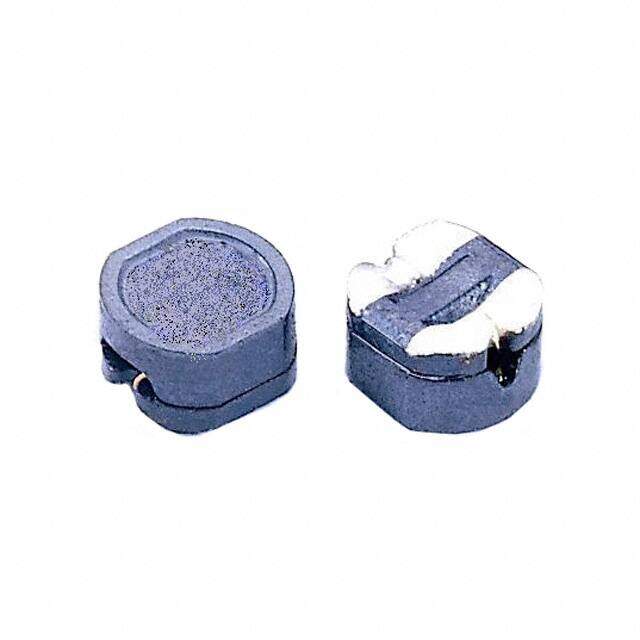

SCR63B-680
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
ROHS3Compliant Obsolete 2009 Tape & Reel (TR) fixed air core inductor -40C~125C 2.52MHz 820mOhm Max 68muH
PDF
/
Inventory: 2834
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2009
Series SCR63B
Size / Dimension 0.256Lx0.232W 6.50mmx5.90mm
Tolerance ±20%
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Current Rating (Amps) 570mA
Shielding Shielded
Current Rating 420mA
Inductance 68μH
Test Frequency 2.52MHz
DC Resistance (DCR) 820mOhm Max
Inductance Frequency - Test 2.52MHz
Current - Saturation 420mA
Dimensions
Height 3.5052mm
Height Seated (Max) 0.138 3.50mm
Length 6.5024mm
Width 5.8928mm
Compliance
RoHS Status ROHS3 Compliant
