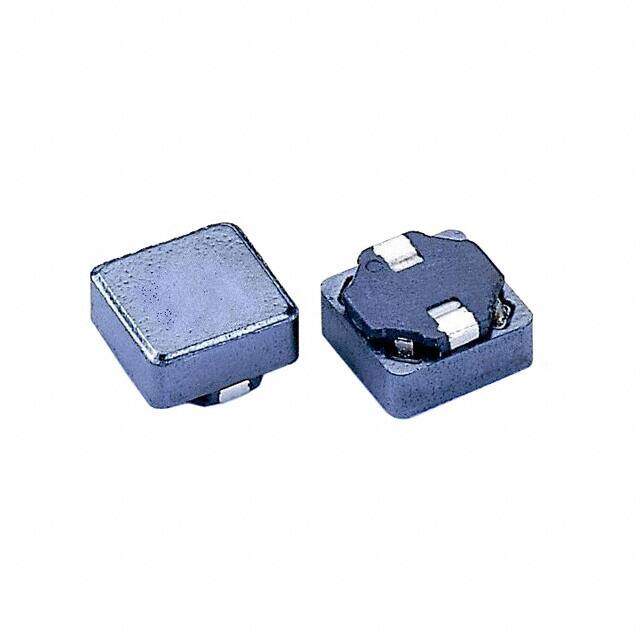

SCPH73B-221
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 220UH 430MA 1.7 OHM
PDF
/
Inventory: 8106
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series SCPH73B
Size / Dimension 0.295Lx0.295W 7.50mmx7.50mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Current Rating (Amps) 430mA
Shielding Shielded
Current Rating 430mA
Inductance 220μH
Test Frequency 1kHz
DC Resistance (DCR) 1.7Ohm Max
Inductance Frequency - Test 1kHz
Current - Saturation 300mA
Dimensions
Height Seated (Max) 0.150 3.80mm
Length 7.493mm
Width 7.493mm
Compliance
RoHS Status ROHS3 Compliant
