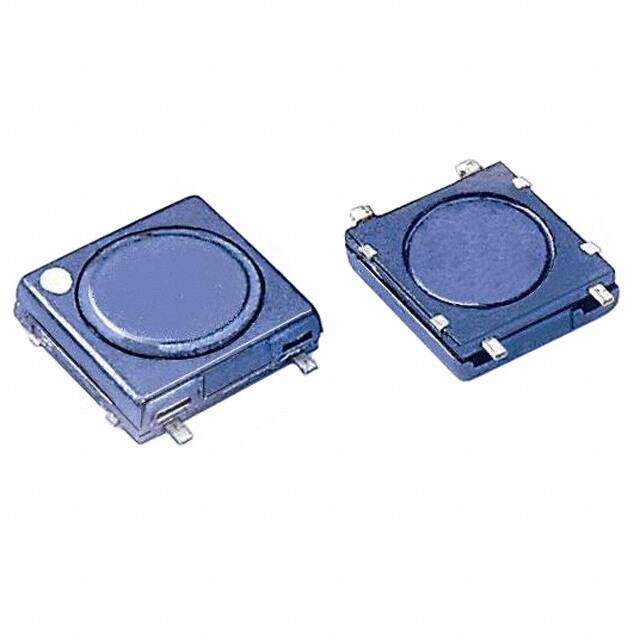

SCMD4D12C-470
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 47UH 330MA 2.25 OHM
PDF
/
Inventory: 1404
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2009
Series SCMD4D12C
Size / Dimension 0.252Lx0.197W 6.40mmx5.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Current Rating (Amps) 330mA
Shielding Shielded
Current Rating 450mA
Inductance 47μH
Test Frequency 100kHz
DC Resistance (DCR) 2.25Ohm Max
Inductance Frequency - Test 100kHz
Current - Saturation 450mA
Dimensions
Height 1.4478mm
Height Seated (Max) 0.057 1.45mm
Length 6.4008mm
Width 5.0038mm
Compliance
RoHS Status ROHS3 Compliant
