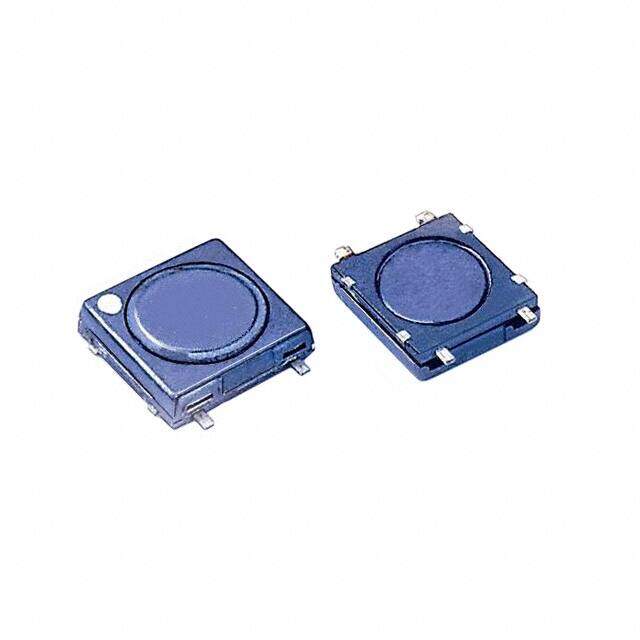

SCMD4D10C-150
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 15UH 500MA 900 MOHM
PDF
/
Inventory: 7550
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2009
Series SCMD4D10C
Size / Dimension 0.252Lx0.197W 6.40mmx5.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Current Rating (Amps) 500mA
Shielding Shielded
Current Rating 670mA
Inductance 15μH
Test Frequency 100kHz
DC Resistance (DCR) 900mOhm Max
Inductance Frequency - Test 100kHz
Current - Saturation 670mA
Dimensions
Height 1.1938mm
Height Seated (Max) 0.047 1.20mm
Length 6.4008mm
Width 5.0038mm
Compliance
RoHS Status ROHS3 Compliant
