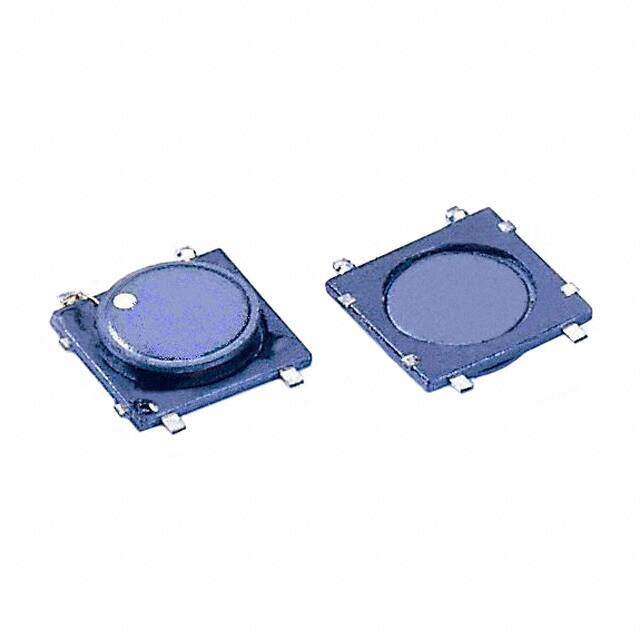

SCMD4D10-220 image
Favorite
SCMD4D10-220 image
Favorite

SCMD4D10-220

Signal Transformer
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description FIXED IND 22UH 420MA 1.3 OHM SMD
PDF
/
Inventory: 7038
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Width 5.0038mm
Length 6.4008mm
Height Seated (Max) 0.047 1.20mm
Height 1.1938mm

Technical

Current - Saturation 550mA
Inductance Frequency - Test 100kHz
DC Resistance (DCR) 1.3Ohm Max
Test Frequency 100kHz
Inductance 22μH
Current Rating 550mA
Shielding Unshielded
Current Rating (Amps) 420mA
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.252Lx0.197W 6.40mmx5.00mm
Series SCMD4D10
Published 2009
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 18 Weeks
