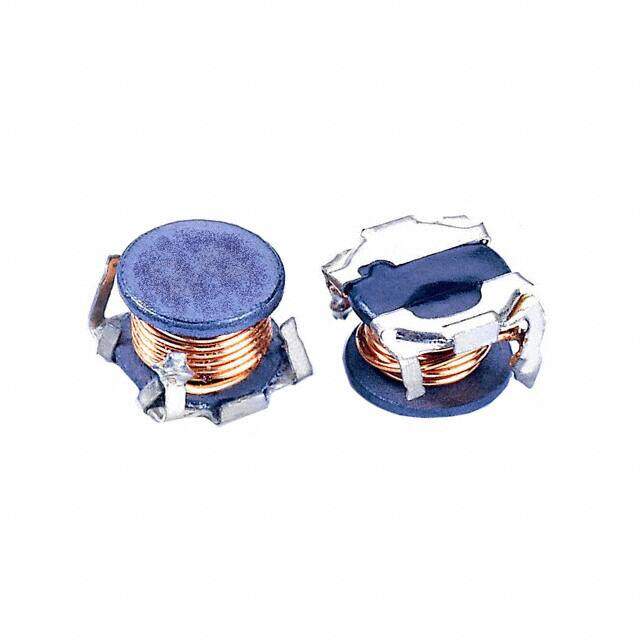

SCH74-391 image
Favorite
SCH74-391 image
Favorite

SCH74-391

Signal Transformer
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description ROHS3Compliant Wirewound Obsolete 2009 fixed air core inductor -40C~125C 1kHz 2.09Ohm Max 390muH
PDF
/
Inventory: 6173
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Width 7.2898mm
Length 8.001mm
Height Seated (Max) 0.205 5.20mm
Height 5.207mm

Technical

Current - Saturation 380mA
Inductance Frequency - Test 1kHz
DC Resistance (DCR) 2.09Ohm Max
Test Frequency 1kHz
Inductance 390μH
Current Rating 380mA
Shielding Unshielded
Current Rating (Amps) 460mA
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Tolerance ±10%
Size / Dimension 0.315Lx0.287W 8.00mmx7.30mm
Series SCH74
Published 2009
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 12 Weeks

Alternative Model

646FY-391K=P3

646FY-391K=P3

Toko
