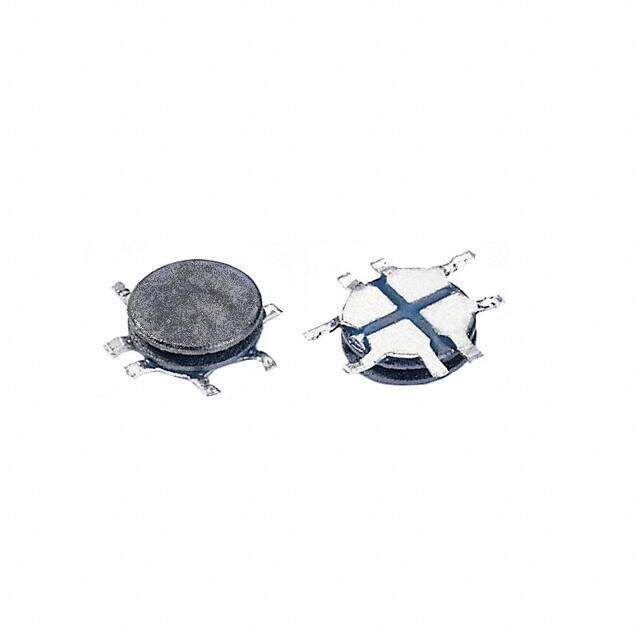

SCH4312-2R2
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
ROHS3Compliant Obsolete 2009 Tape & Reel (TR) fixed air core inductor -40C~125C 100kHz 104mOhm Max 2.2muH
PDF
/
Inventory: 3076
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 5.588mm
Length 6.2992mm
Height Seated (Max) 0.051 1.30mm
Height 1.2954mm
Technical
Current - Saturation 1.3A
Inductance Frequency - Test 100kHz
DC Resistance (DCR) 104mOhm Max
Test Frequency 100kHz
Inductance 2.2μH
Current Rating 1.3A
Shielding Unshielded
Current Rating (Amps) 1.38A
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Tolerance ±20%
Size / Dimension 0.248Lx0.220W 6.30mmx5.60mm
Series SCH4312
Published 2009
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
