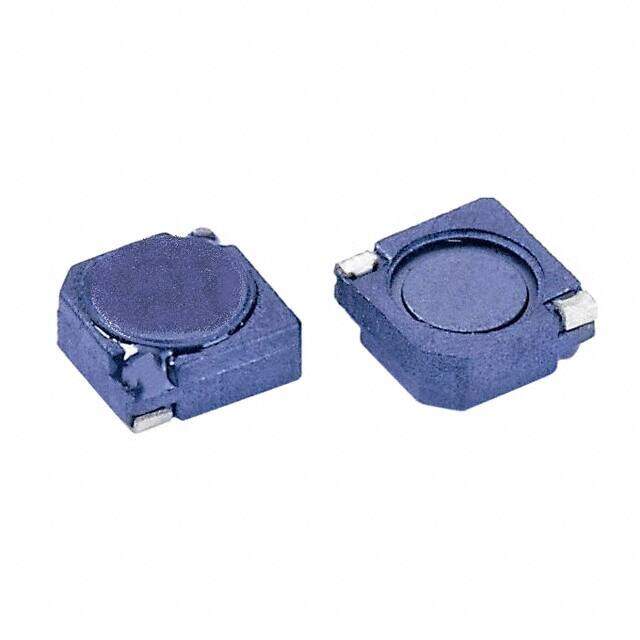

SCC5D23-390 image
Favorite
SCC5D23-390 image
Favorite

SCC5D23-390

Signal Transformer
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description FIXED IND 39UH 800MA 438 MOHM
PDF
/
Inventory: 4797
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Width 5.9944mm
Length 5.9944mm
Height Seated (Max) 0.098 2.50mm
Height 2.4892mm

Technical

Current - Saturation 540mA
Inductance Frequency - Test 100kHz
DC Resistance (DCR) 438mOhm Max
Test Frequency 100kHz
Inductance 39μH
Current Rating 540mA
Shielding Shielded
Current Rating (Amps) 800mA
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Tolerance ±20%
Size / Dimension 0.236Lx0.236W 6.00mmx6.00mm
Series SCC5D23
Published 2009
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
