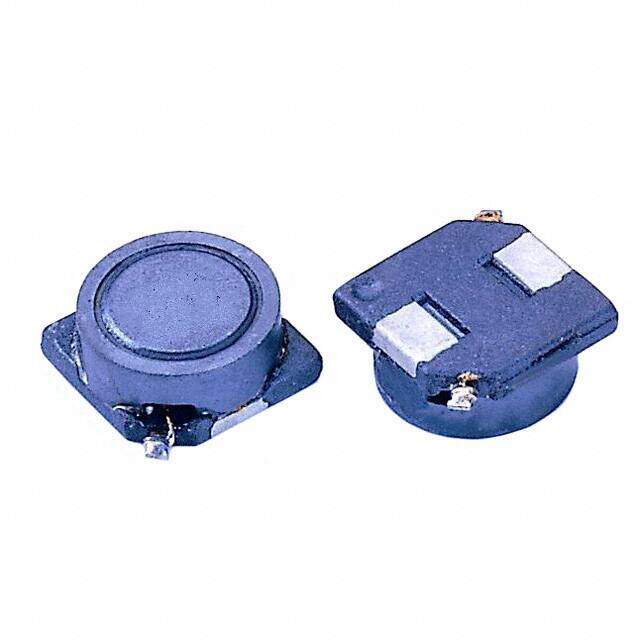

SCB63C-331
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 330UH 340MA 2.32 OHM
PDF
/
Inventory: 5355
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 6.1976mm
Length 6.1976mm
Height Seated (Max) 0.118 3.00mm
Technical
Current - Saturation 110mA
Inductance Frequency - Test 1kHz
DC Resistance (DCR) 2.32Ohm Max
Test Frequency 1kHz
Inductance 330μH
Current Rating 340mA
Shielding Shielded
Current Rating (Amps) 340mA
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Tolerance ±20%
Size / Dimension 0.244Lx0.244W 6.20mmx6.20mm
Series SCB63C
Published 2009
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
