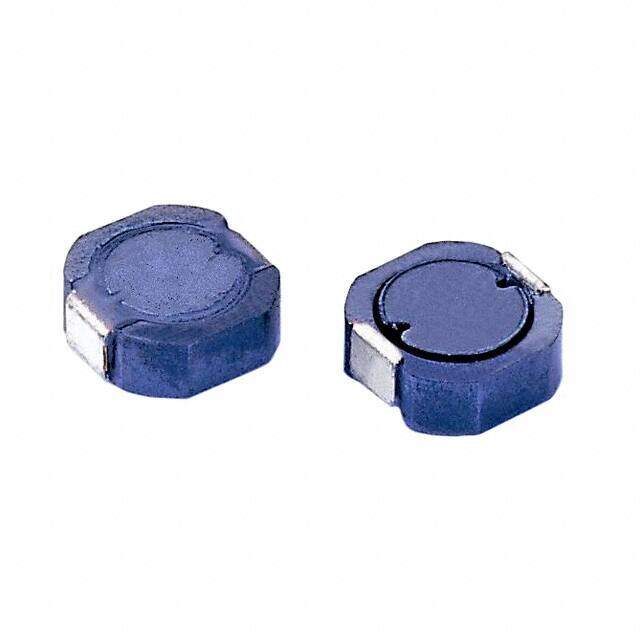

SC62CB-680

Signal Transformer
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description ROHS3Compliant Active 2009 Tape & Reel (TR) Fixed Inductor -40C~125C 100kHz 588mOhm Max 68muH
PDF
/
Inventory: 1508
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Width 6.1976mm
Length 6.2992mm
Height Seated (Max) 0.098 2.50mm

Technical

Current - Saturation 400mA
Inductance Frequency - Test 100kHz
DC Resistance (DCR) 588mOhm Max
Test Frequency 100kHz
Inductance 68μH
Current Rating 650mA
Shielding Shielded
Current Rating (Amps) 650mA
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.248Lx0.244W 6.30mmx6.20mm
Series SC62CB
Published 2009
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 18 Weeks
