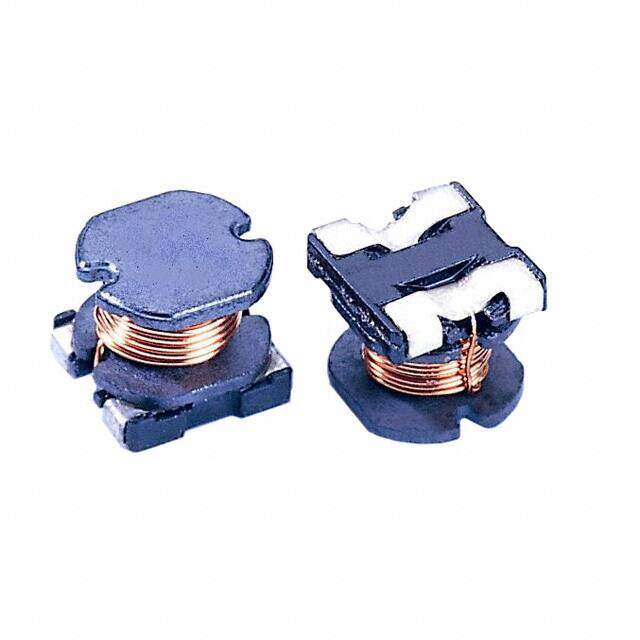

SC54B-120 image
Favorite
SC54B-120 image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description ROHS3Compliant Wirewound Active Tape & Reel (TR) Fixed Inductor -40C~125C 2.52MHz 120mOhm Max 12muH
PDF
/
Inventory: 5093
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 18 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard

Technical

Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series SC54B
Size / Dimension 0.240Lx0.220W 6.10mmx5.60mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 1.9A
Shielding Unshielded
Current Rating 1.4A
Inductance 12μH
Test Frequency 2.52MHz
DC Resistance (DCR) 120mOhm Max
Inductance Frequency - Test 2.52MHz
Current - Saturation 1.4A

Dimensions

Height 4.8514mm
Height Seated (Max) 0.191 4.85mm
Length 6.096mm
Width 5.588mm

Compliance

RoHS Status ROHS3 Compliant
