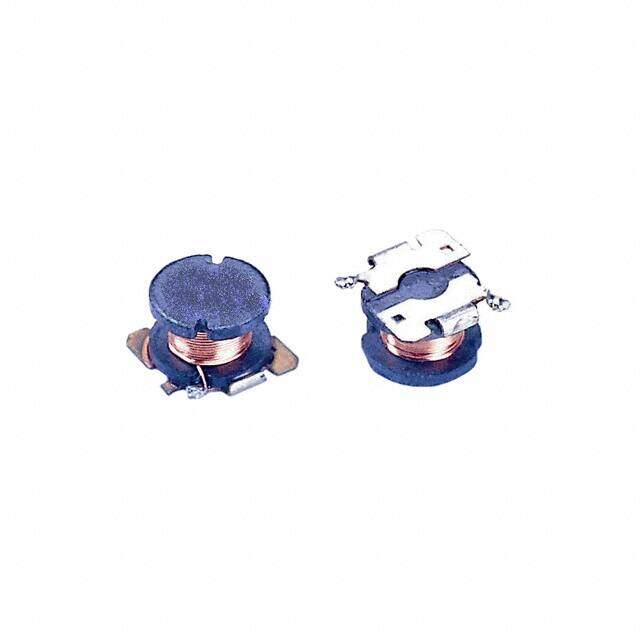

SC53FU-561
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
ROHS3Compliant Wirewound Active 2009 fixed air core inductor -40C~125C 100kHz 7.5Ohm Max 560muH
PDF
/
Inventory: 7540
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2009
Series SC53FU
Size / Dimension 0.205Lx0.205W 5.20mmx5.20mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 180mA
Shielding Unshielded
Current Rating 190mA
Inductance 560μH
Test Frequency 100kHz
DC Resistance (DCR) 7.5Ohm Max
Inductance Frequency - Test 100kHz
Current - Saturation 190mA
Dimensions
Height 3.2004mm
Height Seated (Max) 0.126 3.20mm
Length 5.207mm
Width 5.207mm
Compliance
RoHS Status ROHS3 Compliant
