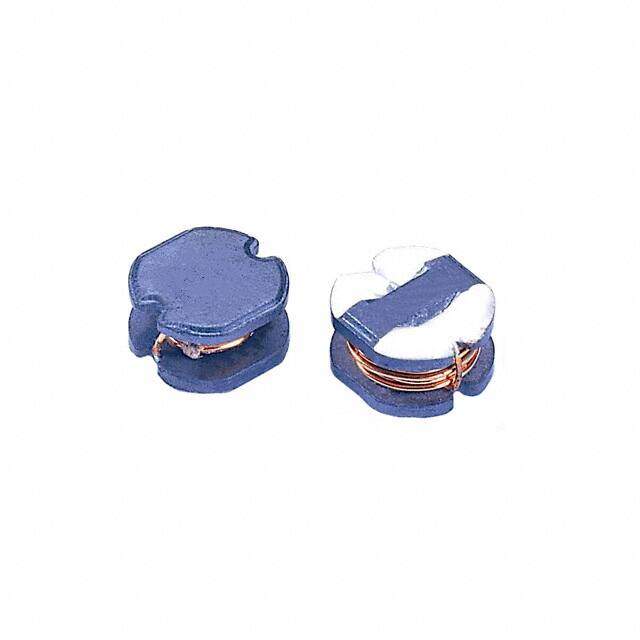

SC53-181
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SC53 Nonstandard 0.240Lx0.217W 6.10mmx5.50mm 180muH
PDF
/
Inventory: 1674
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 5.5118mm
Length 6.096mm
Height Seated (Max) 0.130 3.30mm
Technical
Current - Saturation 350mA
Inductance Frequency - Test 1kHz
DC Resistance (DCR) 1.6Ohm Max
Test Frequency 1kHz
Inductance 180μH
Current Rating 400mA
Shielding Unshielded
Current Rating (Amps) 400mA
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.240Lx0.217W 6.10mmx5.50mm
Series SC53
Published 2009
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 18 Weeks
