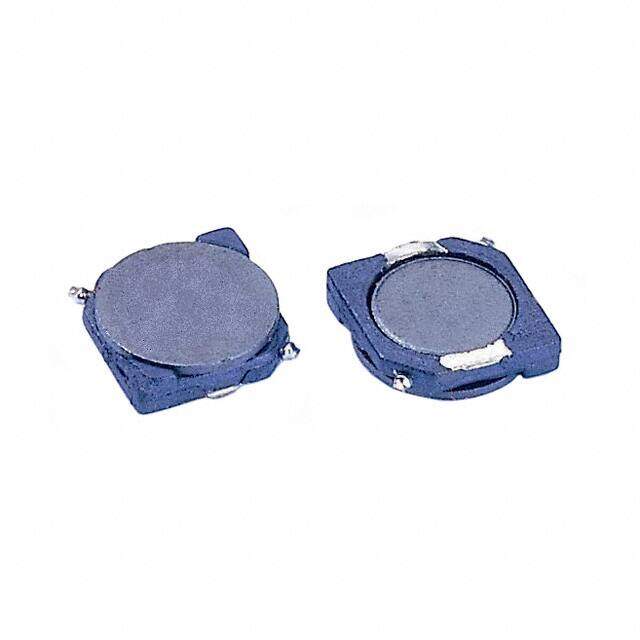

SC511MF-150
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 15UH 860MA 340 MOHM
PDF
/
Inventory: 1923
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2009
Series SC511MF
Size / Dimension 0.205Lx0.205W 5.20mmx5.20mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Current Rating (Amps) 860mA
Shielding Shielded
Current Rating 860mA
Inductance 15μH
Test Frequency 100kHz
DC Resistance (DCR) 340mOhm Max
Inductance Frequency - Test 100kHz
Current - Saturation 500mA
Dimensions
Height Seated (Max) 0.051 1.30mm
Length 5.207mm
Width 5.207mm
Compliance
RoHS Status ROHS3 Compliant
