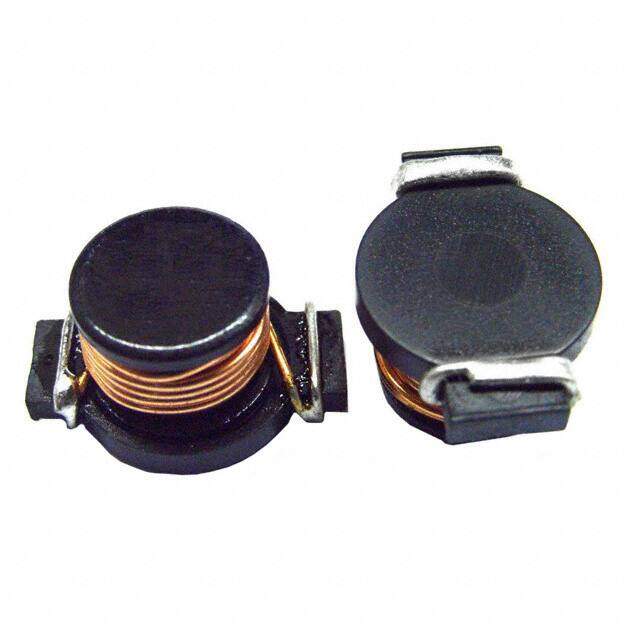

SC5040FH-331
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 330UH 1.8A 325 MOHM
PDF
/
Inventory: 4031
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 16.256mm
Length 22.352mm
Height Seated (Max) 0.484 12.30mm
Height 12.2936mm
Technical
Current - Saturation 3A
Inductance Frequency - Test 100kHz
DC Resistance (DCR) 325mOhm Max
Test Frequency 100kHz
Inductance 330μH
Current Rating 3A
Shielding Unshielded
Current Rating (Amps) 1.8A
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±30%
Size / Dimension 0.880Lx0.640W 22.35mmx16.26mm
Series SC5040FH
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 18 Weeks
