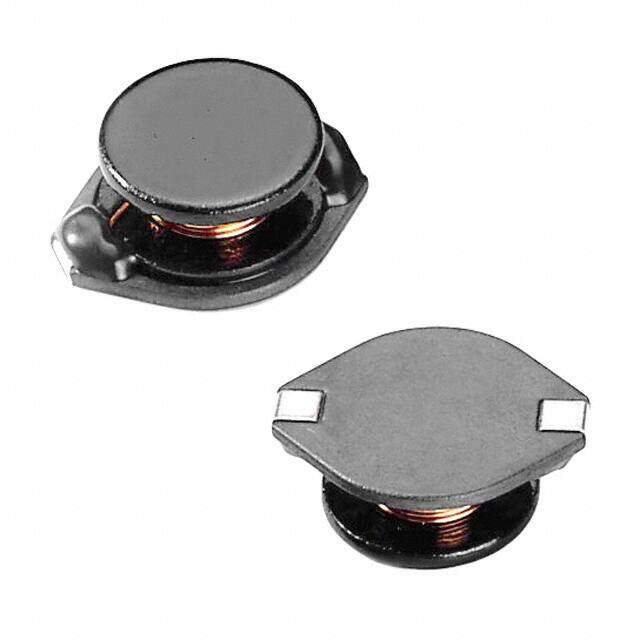

SC5022F-330
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 33UH 3.3A 66 MOHM SMD
PDF
/
Inventory: 8106
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2009
Series SC5022F
Size / Dimension 0.750Lx0.620W 19.04mmx15.74mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 3.3A
Shielding Unshielded
Current Rating 5.5A
Inductance 33μH
Test Frequency 100kHz
DC Resistance (DCR) 66mOhm Max
Inductance Frequency - Test 100kHz
Current - Saturation 5.5A
Dimensions
Height 7.112mm
Height Seated (Max) 0.280 7.11mm
Length 19.05mm
Width 15.748mm
Compliance
RoHS Status ROHS3 Compliant
