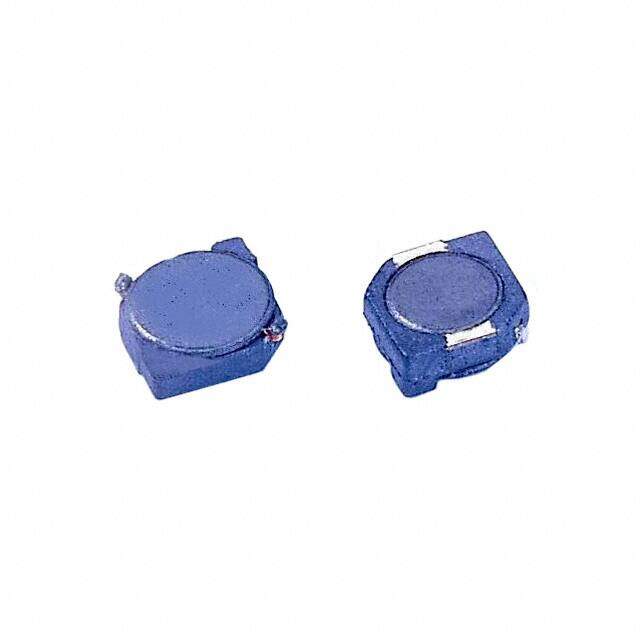

SC414MF-3R3
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 3.3UH 1.55A 137 MOHM
PDF
/
Inventory: 4495
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 4.2926mm
Length 4.2926mm
Height Seated (Max) 0.059 1.50mm
Technical
Current - Saturation 1.4A
Inductance Frequency - Test 100kHz
DC Resistance (DCR) 137mOhm Max
Test Frequency 100kHz
Inductance 3.3μH
Current Rating 1.55A
Shielding Shielded
Current Rating (Amps) 1.55A
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Tolerance ±20%
Size / Dimension 0.169Lx0.169W 4.30mmx4.30mm
Series SC414MF
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
