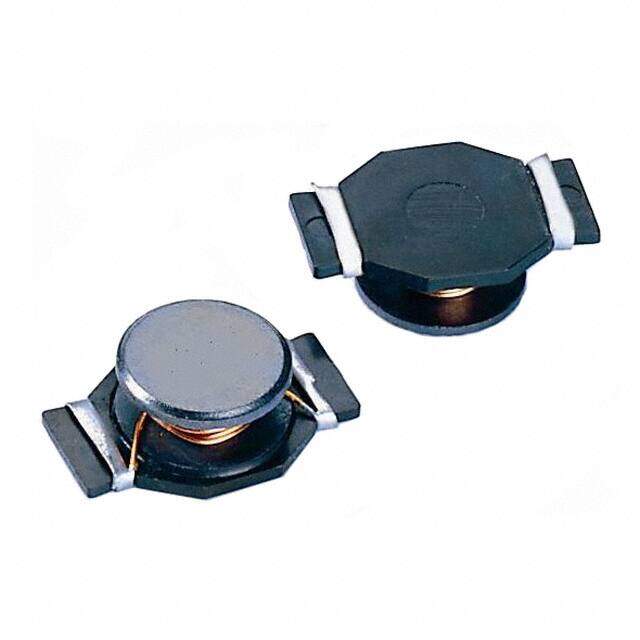

SC4020FH-4R7
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 4.7UH 7.7A 15 MOHM SMD
PDF
/
Inventory: 4705
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2009
Series SC4020FH
Size / Dimension 0.768Lx0.524W 19.50mmx13.30mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 7.7A
Shielding Unshielded
Current Rating 7.7A
Inductance 4.7μH
Test Frequency 100kHz
DC Resistance (DCR) 15mOhm Max
Inductance Frequency - Test 100kHz
Current - Saturation 7.7A
Dimensions
Height 6.9088mm
Height Seated (Max) 0.272 6.90mm
Length 19.5072mm
Width 13.3096mm
Compliance
RoHS Status ROHS3 Compliant
