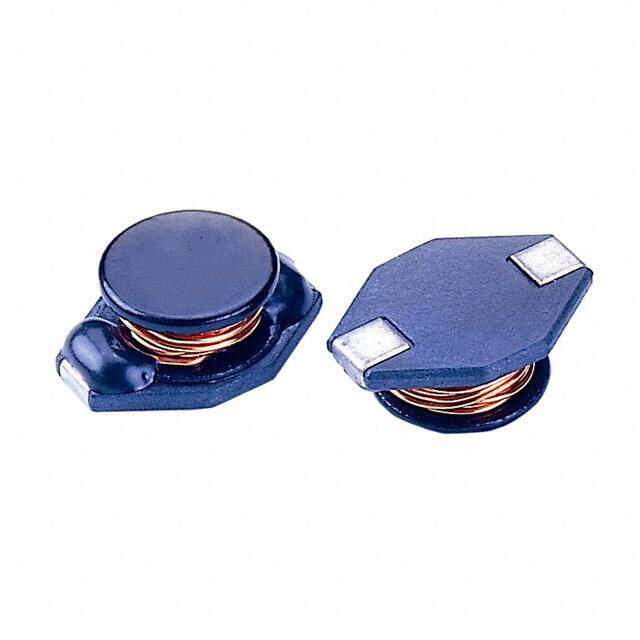

SC3316F-471
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
ROHS3Compliant Wirewound Active 2009 fixed air core inductor -40C~125C 100kHz 1.27Ohm Max 470muH
PDF
/
Buying Options
Total Price: USD $0.81
Unit Price: USD $0.8096
≥1 USD $0.8096
≥10 USD $0.68464
≥100 USD $0.622336
≥500 USD $0.584848
≥1000 USD $0.48532
≥3000 USD $0.447955
Inventory: 1121
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2009
Series SC3316F
Size / Dimension 0.530Lx0.390W 13.45mmx9.90mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 600mA
Shielding Unshielded
Current Rating 600mA
Inductance 470μH
Test Frequency 100kHz
DC Resistance (DCR) 1.27Ohm Max
Inductance Frequency - Test 100kHz
Current - Saturation 500mA
Dimensions
Height Seated (Max) 0.205 5.21mm
Length 13.462mm
Width 9.906mm
Compliance
RoHS Status ROHS3 Compliant
