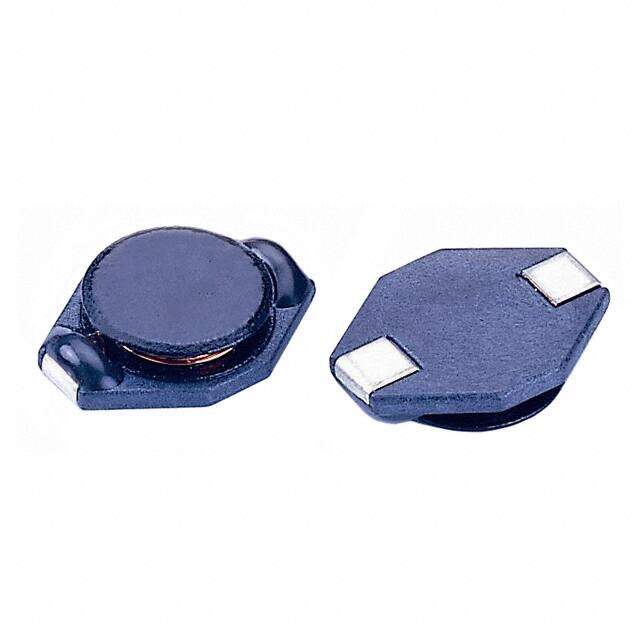

SC3308F-221
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
ROHS3Compliant Wirewound Active 2009 Fixed Inductor -40C~125C 100kHz 1.9Ohm Max 220muH
PDF
/
Inventory: 4880
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2009
Series SC3308F
Size / Dimension 0.530Lx0.390W 13.45mmx9.90mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 480mA
Shielding Unshielded
Current Rating 480mA
Inductance 220μH
Test Frequency 100kHz
DC Resistance (DCR) 1.9Ohm Max
Inductance Frequency - Test 100kHz
Current - Saturation 500mA
Dimensions
Height Seated (Max) 0.118 3.00mm
Length 13.462mm
Width 9.906mm
Compliance
RoHS Status ROHS3 Compliant
