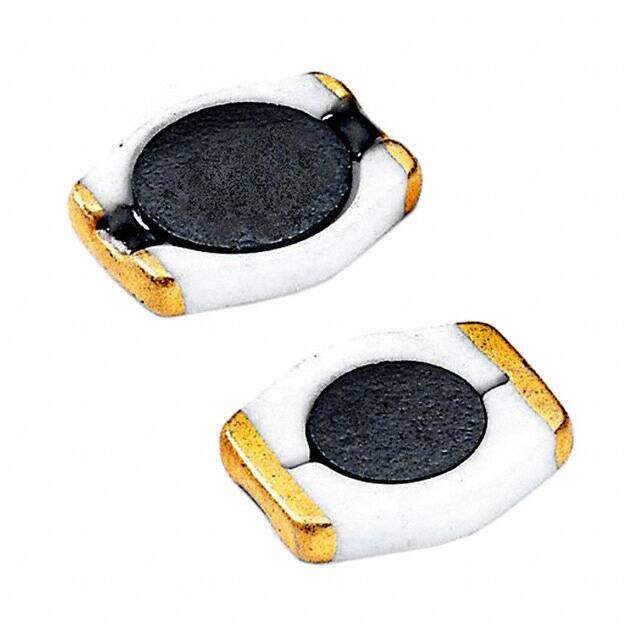

SC2506-100
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
ROHS3Compliant Obsolete 2009 Tape & Reel (TR) fixed air core inductor 100kHz 240mOhm Max 10muH ±20%
PDF
/
Inventory: 8572
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Technical
Packaging Tape & Reel (TR)
Published 2009
Series SC2506
Size / Dimension 0.364Lx0.310W 9.25mmx7.87mm
Tolerance ±20%
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Current Rating (Amps) 1.1A
Shielding Unshielded
Current Rating 1A
Inductance 10μH
Test Frequency 100kHz
DC Resistance (DCR) 240mOhm Max
Inductance Frequency - Test 100kHz
Current - Saturation 1A
Dimensions
Height 1.651mm
Height Seated (Max) 0.065 1.65mm
Length 9.2456mm
Width 7.874mm
Compliance
RoHS Status ROHS3 Compliant
