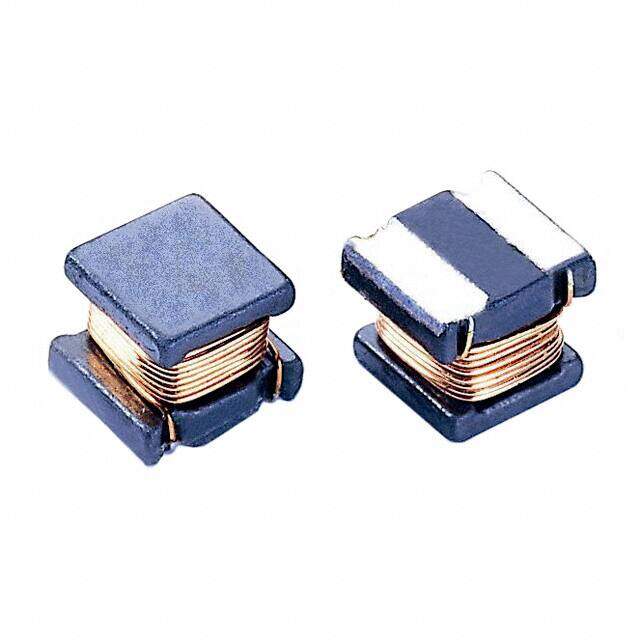

SC2220-222
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
ROHS3Compliant Wirewound Active 2009 Fixed Inductor -40C~125C 10kHz 30.1Ohm Max 2.2mH
PDF
/
Inventory: 4925
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2009
Series SC2220
Size / Dimension 0.236Lx0.209W 6.00mmx5.30mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 100mA
Shielding Unshielded
Current Rating 100mA
Inductance 2.2mH
Test Frequency 10kHz
DC Resistance (DCR) 30.1Ohm Max
Inductance Frequency - Test 10kHz
Current - Saturation 100mA
Dimensions
Height 5.0038mm
Height Seated (Max) 0.197 5.00mm
Length 5.9944mm
Width 5.3086mm
Compliance
RoHS Status ROHS3 Compliant
