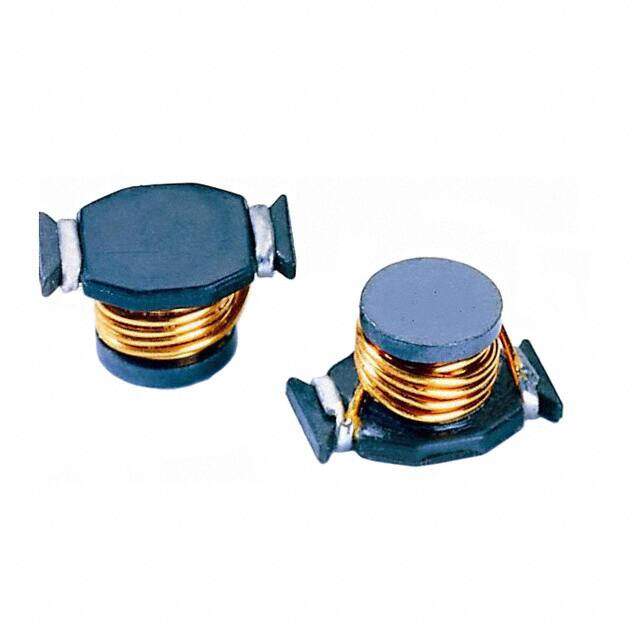

SC1813FH-330 image
Favorite
SC1813FH-330 image
Favorite

SC1813FH-330

Signal Transformer
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description ROHS3Compliant Wirewound Active 2009 Fixed Inductor -40C~125C 100kHz 350mOhm Max 33muH
PDF
/
Inventory: 2364
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 18 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard

Technical

Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2009
Series SC1813FH
Size / Dimension 0.350Lx0.240W 8.89mmx6.10mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 920mA
Shielding Unshielded
Current Rating 900mA
Inductance 33μH
Test Frequency 100kHz
DC Resistance (DCR) 350mOhm Max
Inductance Frequency - Test 100kHz
Current - Saturation 900mA

Dimensions

Height 5.0038mm
Height Seated (Max) 0.197 5.00mm
Length 8.89mm
Width 6.096mm

Compliance

RoHS Status ROHS3 Compliant
