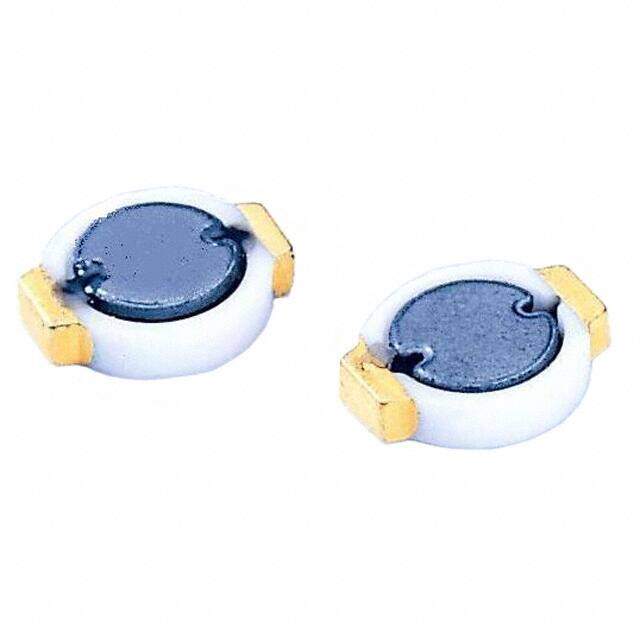

SC1606-101 image
Favorite
SC1606-101 image
Favorite

SC1606-101

Signal Transformer
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description ROHS3Compliant Active Tape & Reel (TR) Surface Mount fixed air core inductor -40C~125C 100kHz 2.6Ohm Max 100muH
PDF
/
Inventory: 4736
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Width 5.588mm
Length 6.5024mm
Height Seated (Max) 0.071 1.80mm
Height 1.8034mm

Technical

Current - Saturation 300mA
Inductance Frequency - Test 100kHz
DC Resistance (DCR) 2.6Ohm Max
Test Frequency 100kHz
Inductance 100μH
Current Rating 300mA
Shielding Unshielded
Current Rating (Amps) 300mA
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.256Lx0.220W 6.50mmx5.60mm
Series SC1606
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 18 Weeks

Alternative Model

ASPI-0504-101K-T

ASPI-0504-101K-T

Abracon LLC
