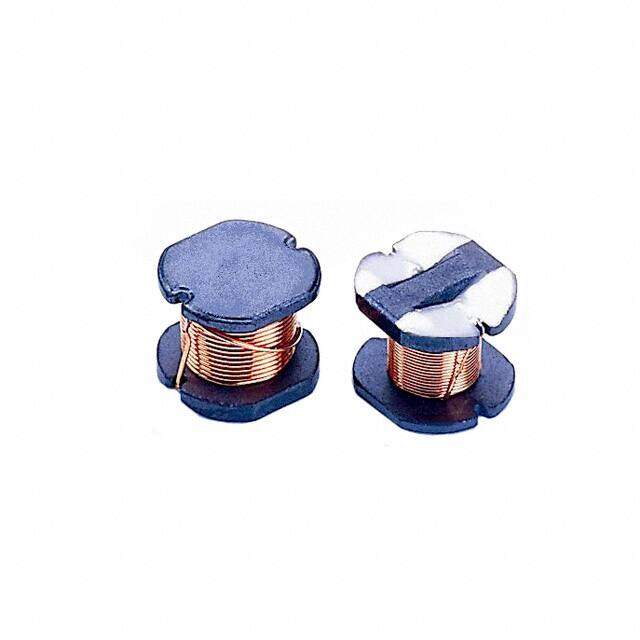

SC108-390
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
ROHS3Compliant Wirewound Active 2009 fixed air core inductor -40C~125C 2.52MHz 90mOhm Max 39muH
PDF
/
Inventory: 8293
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2009
Series SC108
Size / Dimension 0.406Lx0.366W 10.30mmx9.30mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 2.9A
Shielding Unshielded
Current Rating 2.2A
Inductance 39μH
Test Frequency 2.52MHz
DC Resistance (DCR) 90mOhm Max
Inductance Frequency - Test 2.52MHz
Current - Saturation 2.2A
Dimensions
Height 8.3058mm
Height Seated (Max) 0.327 8.30mm
Length 10.3124mm
Width 9.2964mm
Compliance
RoHS Status ROHS3 Compliant
