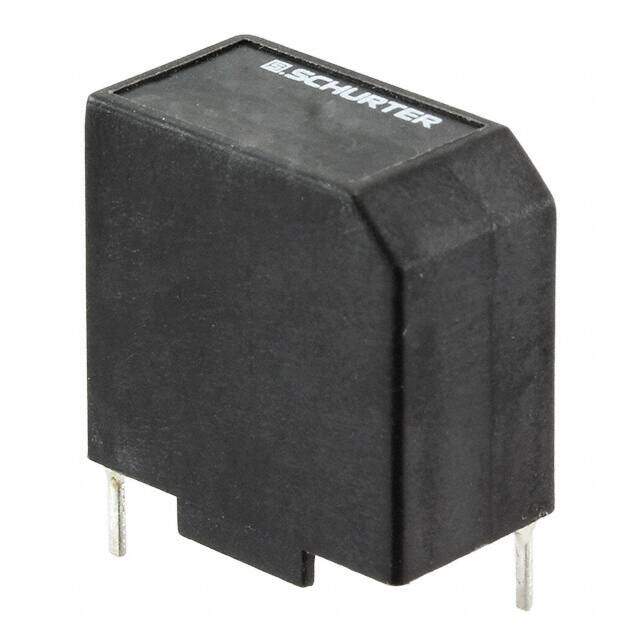

DSH-22-0004
RoHS
RoHS compliant
RoHS compliantPackage Radial, Horizontal - Corner Terminals
Category Inductors, Coils, Chokes / Fixed Inductors
Description
DSH Radial Horizontal - Corner Terminals 0.906Lx0.512W 23.00mmx13.00mm 200muH
PDF
/
Inventory: 4982
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Height 24.003mm
Technical
Self Resonant Frequency 4.8MHz
Number of Lines 1
DC Current 1.4A
Inductor Type GENERAL PURPOSE INDUCTOR
Lead/Base Style Radial
Inductor Application RF INDUCTOR
Max DC Current 1.4A
DC Resistance (DCR) 160mOhm
Max Current Rating 1.4A
Inductance 200 μH
Lead Length 3.5mm
Lead Pitch 20mm
Military Standard Not
Current Rating 1.4A
Construction Rectangular
Depth 13mm
Number of Functions 1
Shielding NO
Voltage - Rated DC 600V
HTS Code 8504.50.80.00
ECCN Code EAR99
Moisture Sensitivity Level (MSL) Vendor Undefined
Part Status Active
Tolerance 15%
Size / Dimension 0.906Lx0.512W 23.00mmx13.00mm
Series DSH
Published 2013
Packaging Bulk
Operating Temperature -40°C~125°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Weight 10.000011g
Terminal Shape WIRE
Package / Case Radial, Horizontal - Corner Terminals
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 12 Weeks

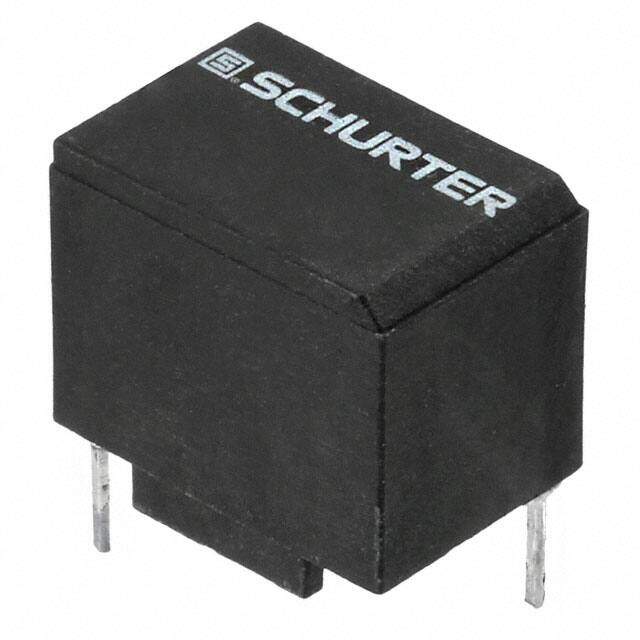

Alternative Model
