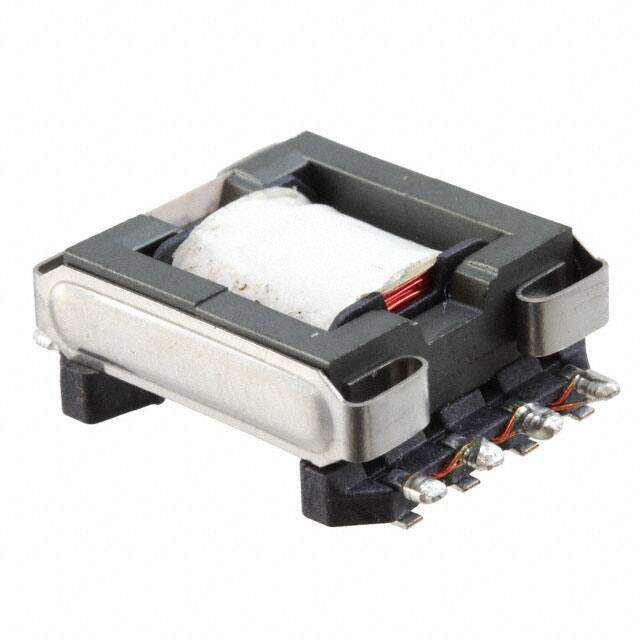

24518
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
Nonstandard 0.895Lx0.660W 22.73mmx16.76mm 100muH ±10%
PDF
/
Buying Options
Total Price: USD $3.24
Unit Price: USD $3.2384
≥1 USD $3.2384
≥10 USD $3.16624
≥100 USD $3.104992
Inventory: 134
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Dimensions
Height Seated (Max) 0.315 8.00mm
Technical
Current - Saturation 1.77A
Inductance Frequency - Test 10kHz
Contact Finish Termination TIN OVER NICKEL
Coupling Type SNAP
DC Resistance (DCR) 90mOhm Max
Test Frequency 10kHz
Termination Type SOLDER
Inductance 100μH
Contact Gender MALE
Current Rating 2.1A
Shielding Unshielded
Total Number of Contacts 3
IEC Conformance YES
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating TIN OVER NICKEL
Additional Feature STANDARD: IEC 320/C14, BRASS, NICKEL PLATED ALSO AVAILABLE
Connector Type MAINS POWER CONNECTOR
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Discontinued
Pbfree Code yes
JESD-609 Code e3
Tolerance ±10%
Size / Dimension 0.895Lx0.660W 22.73mmx16.76mm
Packaging Bulk
Physical
Shell Material POLYAMIDE
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Contact Material BRASS
Alternative Model
