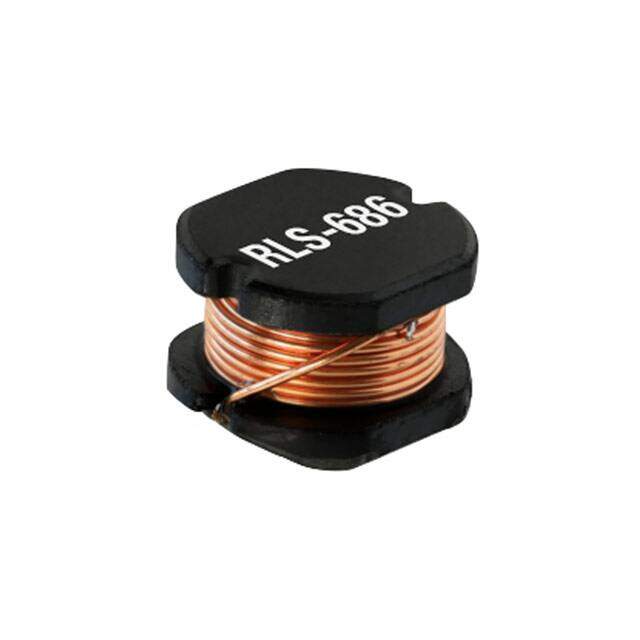

RLS-686

Recom Power
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description RLS Series 68 uH ±10% 280 mOhm DCR SMT Wirewound Line Inductor
PDF
/
Buying Options
Total Price: USD $1.28
Unit Price: USD $1.2848
≥1 USD $1.2848
≥10 USD $1.11936
≥100 USD $1.10264
≥500 USD $1.070432
≥1000 USD $1.038048
≥3000 USD $1.005664
Inventory: 2669
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 12 Weeks

Physical

Mounting Type Surface Mount
Package / Case Nonstandard

Technical

Operating Temperature -40°C~105°C
Packaging Bulk
Size / Dimension 0.307Lx0.276W 7.80mmx7.00mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 990mA
Shielding Unshielded
Inductance 68μH
DC Resistance (DCR) 280mOhm Max
Inductance Frequency - Test 100kHz
Current - Saturation 1.05A

Dimensions

Height Seated (Max) 0.217 5.50mm

Compliance

RoHS Status ROHS3 Compliant
