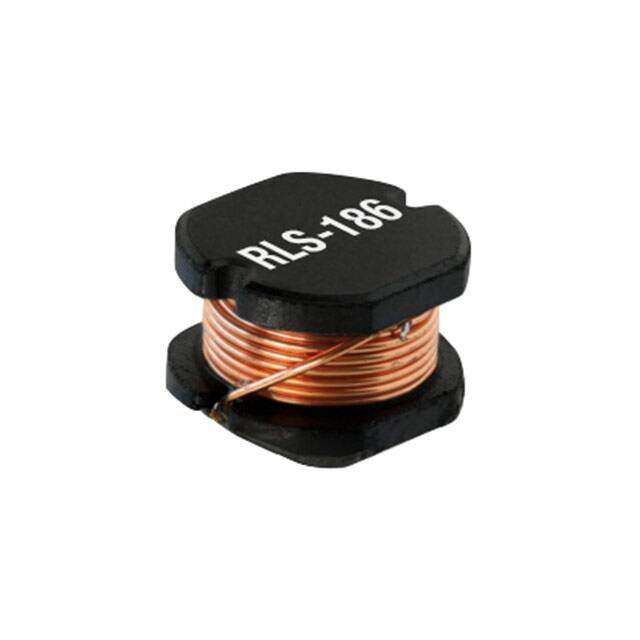

RLS-186
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 18UH 1.89A 100MOHM SMD
PDF
/
Buying Options
Total Price: USD $1.28
Unit Price: USD $1.2848
≥1 USD $1.2848
≥10 USD $1.11936
≥100 USD $1.10264
≥500 USD $1.070432
≥1000 USD $1.038048
≥3000 USD $1.005664
Inventory: 1181
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.217 5.50mm
Technical
Current - Saturation 2.14A
Inductance Frequency - Test 100kHz
DC Resistance (DCR) 100mOhm Max
Inductance 18μH
Shielding Unshielded
Current Rating (Amps) 1.89A
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±10%
Size / Dimension 0.307Lx0.276W 7.80mmx7.00mm
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Package / Case Nonstandard
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
