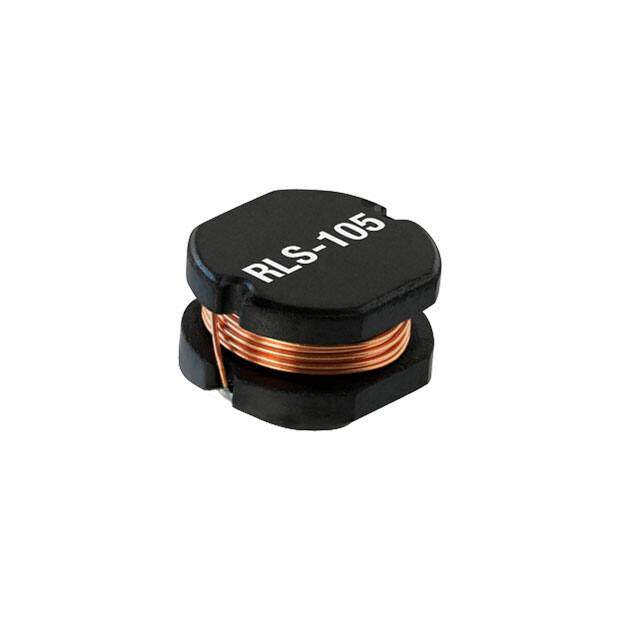

RLS-105
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 100UH 1.02A 350MOHM SM
PDF
/
Buying Options
Total Price: USD $1.72
Unit Price: USD $1.716
≥1 USD $1.716
≥10 USD $1.50304
≥100 USD $1.48104
≥500 USD $1.437216
≥1000 USD $1.393568
≥3000 USD $1.350096
Inventory: 1031
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.232 5.90mm
Technical
Current - Saturation 1.1A
Inductance Frequency - Test 100kHz
DC Resistance (DCR) 350mOhm Max
Inductance 100μH
Shielding Unshielded
Current Rating (Amps) 1.02A
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±10%
Size / Dimension 0.394Lx0.354W 10.00mmx9.00mm
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Package / Case Nonstandard
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
