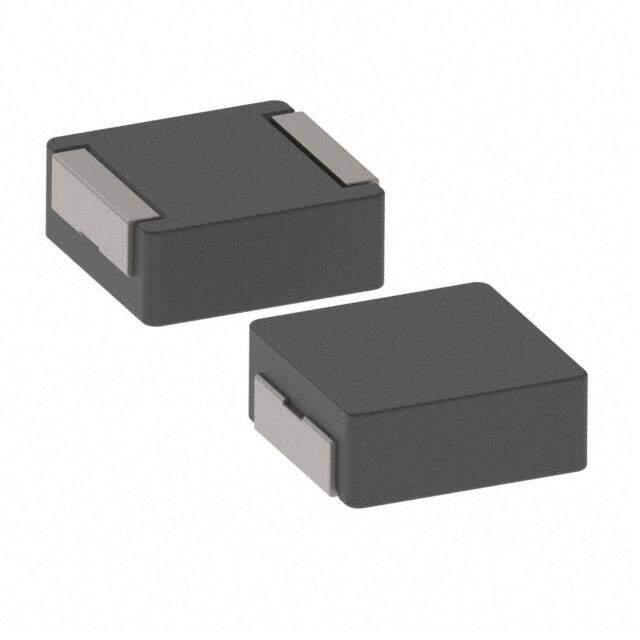

PM4344.222NLT
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
INDUCTOR 17.7X17.2X7.0 2.2UH
PDF
/
Inventory: 6583
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.276 7.00mm
Technical
Current - Saturation 47A
Inductance Frequency - Test 100kHz
DC Resistance (DCR) 2.7mOhm Max
Inductance 2.2μH
Shielding Shielded
Current Rating (Amps) 43.5A
Type Molded
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.697Lx0.677W 17.70mmx17.20mm
Series PM4344.XXXNLT
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Package / Case Nonstandard
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
