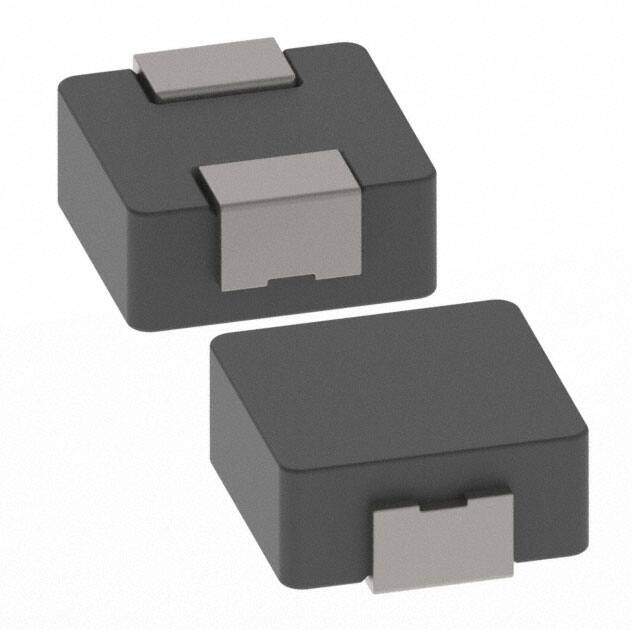

PM4341.333NLT
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
INDUCTOR 7.6X6.9X3.0MM 33.0UH
PDF
/
Inventory: 7152
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Series PM4341.XXXNLT
Size / Dimension 0.299Lx0.272W 7.60mmx6.90mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Molded
Current Rating (Amps) 2A
Shielding Shielded
Inductance 33μH
DC Resistance (DCR) 240mOhm Max
Inductance Frequency - Test 100kHz
Current - Saturation 2.5A
Dimensions
Height Seated (Max) 0.118 3.00mm
Compliance
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
