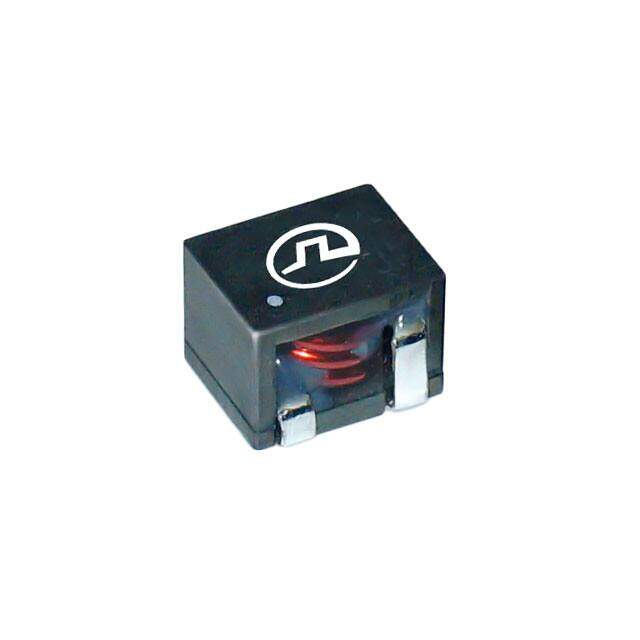

PG1083.472NL
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
RoHS Compliant Wirewound Active WRAPAROUND Fixed Inductor -40C~130C 100kHz 2.8mOhm Max 4.7muH
PDF
/
Buying Options
Total Price: USD $3.62
Unit Price: USD $3.6168
≥1 USD $3.6168
≥10 USD $3.02544
≥100 USD $2.762496
≥500 USD $2.367842
≥1000 USD $2.170476
≥3000 USD $2.10467
Inventory: 93
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~130°C
Packaging Tray
Series PG1083NL
Size / Dimension 0.854Lx0.846W 21.70mmx21.50mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Packing Method TR
Shielding YES
Number of Functions 1
Construction Chip
Current Rating 26A
Inductance 4.7μH
Test Frequency 0.1MHz
DC Resistance (DCR) 2.8mOhm Max
Inductor Application POWER INDUCTOR
Terminal Placement DUAL IN-LINE
Inductance Frequency - Test 100kHz
Current - Saturation 30A
Case/Size Code 8585
Dimensions
Height Seated (Max) 0.417 10.60mm
Compliance
RoHS Status RoHS Compliant
