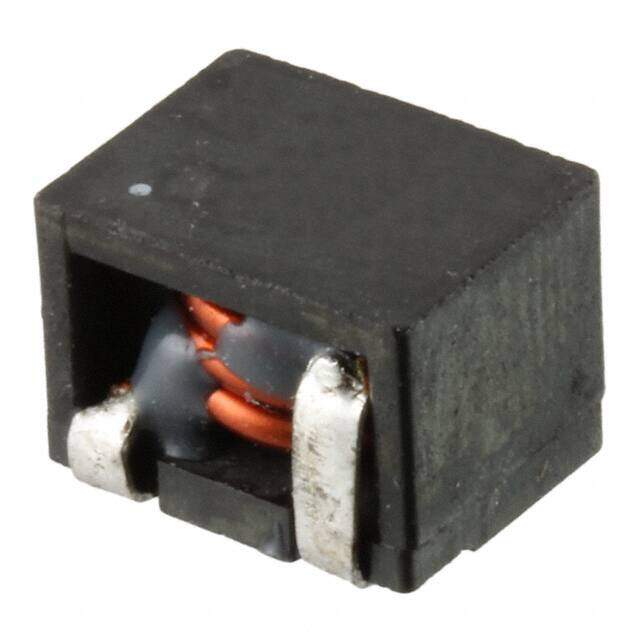

PG0702.222NLT image
Favorite
PG0702.222NLT image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description PG0702NL Nonstandard 0.425Lx0.362W 10.80mmx9.20mm 2.2muH
PDF
/
Buying Options
Total Price: USD $2.26
Unit Price: USD $2.256199
≥1 USD $2.256199
≥10 USD $2.128494
≥100 USD $2.008008
≥500 USD $1.894352
≥1000 USD $1.787122
Inventory: 1191
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 9 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Shape/Size Description RECTANGULAR PACKAGE
Core Material Ferrite

Technical

Operating Temperature -40°C~130°C
Packaging Tape & Reel (TR)
Series PG0702NL
Size / Dimension 0.425Lx0.362W 10.80mmx9.20mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
ECCN Code EAR99
Type Wirewound
Resistance 3.3mOhm
HTS Code 8504.50.80.00
Shielding NO
Number of Functions 1
Depth 9.2mm
Current Rating 15.9A
Military Standard Not
Inductance 2.2μH
Test Frequency 100kHz
DC Resistance (DCR) 3.3mOhm
Max DC Current 15.9A
Inductor Application POWER INDUCTOR
DC Current 15.9A
Special Feature DCR IS MEASURED AT 6% TOLERANCE

Dimensions

Height 8mm
Height Seated (Max) 0.315 8.00mm

Compliance

Radiation Hardening No
RoHS Status RoHS Compliant
