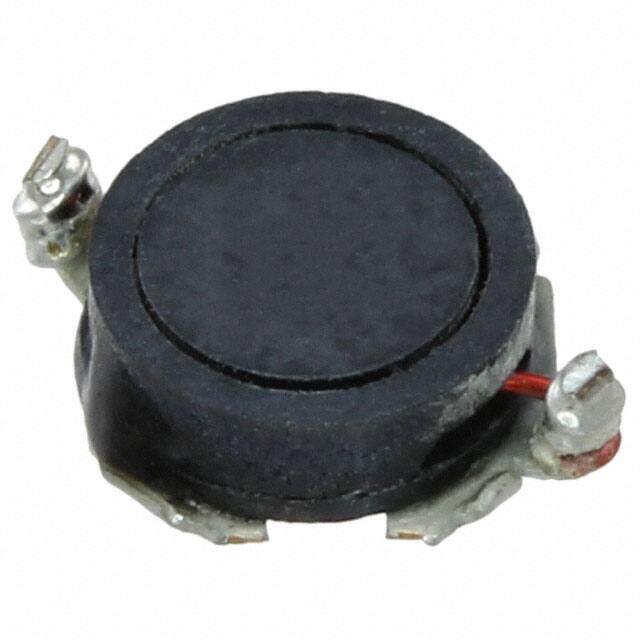

PG0085.103NLT image
Favorite
PG0085.103NLT image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description RoHS Compliant Wirewound Active ONE SURFACE fixed air core inductor -40C~130C 29MHz 182mOhm Max 10muH
PDF
/
Inventory: 4298
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 13 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape ONE SURFACE
Shape/Size Description RECTANGULAR PACKAGE

Technical

Operating Temperature -40°C~130°C
Packaging Tape & Reel (TR)
Series PG0085NL
Size / Dimension 0.169Lx0.169W 4.30mmx4.30mm
Tolerance ±20%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Shielding YES
Number of Functions 1
Depth 4.3mm
Current Rating 550mA
Inductance 10μH
Test Frequency 100kHz
DC Resistance (DCR) 182mOhm Max
Max DC Current 550mA
Frequency - Self Resonant 29MHz
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED

Dimensions

Height 1.8034mm
Height Seated (Max) 0.071 1.80mm

Compliance

Radiation Hardening No
RoHS Status RoHS Compliant
