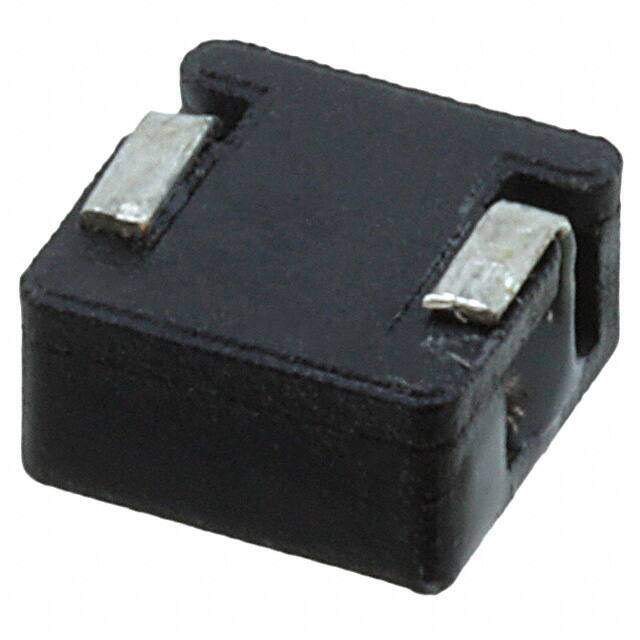

PG0083.472NL
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
PG0083 Nonstandard 0.268Lx0.268W 6.80mmx6.80mm 4.7muH
PDF
/
Buying Options
Total Price: USD $2.48
Unit Price: USD $2.4816
≥1 USD $2.4816
≥10 USD $2.1076
≥100 USD $1.942336
≥500 USD $1.7358
≥1000 USD $1.4465
≥3000 USD $1.405193
Inventory: 1070
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Surface Mount YES
Terminal Shape ONE SURFACE
Shape/Size Description RECTANGULAR PACKAGE
Core Material Non-Specified
Technical
Operating Temperature -40°C~95°C
Packaging Tray
Series PG0083
Size / Dimension 0.268Lx0.268W 6.80mmx6.80mm
Tolerance ±25%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Wirewound
Terminal Finish Matte Tin (Sn)
HTS Code 8504.50.80.00
Current Rating (Amps) 4.5A
Shielding NO
Number of Functions 1
Construction Flat Coil
Inductance 4.7μH
Test Frequency 0.1MHz
DC Resistance (DCR) 38mOhm Max
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductance Frequency - Test 100kHz
Current - Saturation 8A
Case/Size Code 2727
Rated Current-Max 4.5A
Dimensions
Height Seated (Max) 0.157 4.00mm
Compliance
RoHS Status RoHS Compliant
