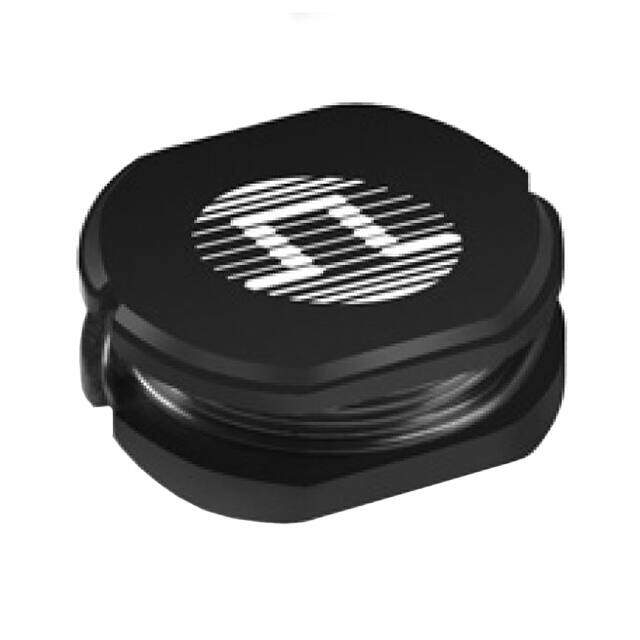

PF0581.394NLT
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
Fixed Inductors UNSHIELDED DRUM CORE
PDF
/
Inventory: 8914
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape ONE SURFACE
Shape/Size Description CYLINDRICAL PACKAGE
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series PF0581NL
Size / Dimension 0.406Lx0.367W 10.32mmx9.32mm
Tolerance ±10%
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Wirewound
Terminal Finish Matte Tin (Sn)
HTS Code 8504.50.80.00
Shielding NO
Number of Functions 1
Current Rating 390mA
Inductance 390μH
DC Resistance (DCR) 1.245Ohm Max
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Rated Current-Max 0.6A
Dimensions
Height Seated (Max) 0.174 4.42mm
Compliance
RoHS Status RoHS Compliant
