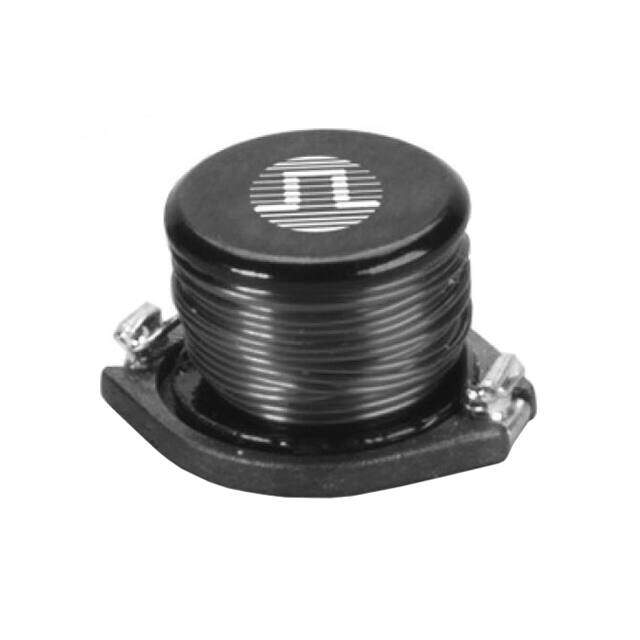

PF0504.682NLT
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
RoHS Compliant Wirewound Active Tape & Reel (TR) Fixed Inductor -40C~125C 9.8mOhm Max 6.8muH ±20%
PDF
/
Inventory: 1469
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 15.24mm
Length 18.54mm
Height Seated (Max) 0.450 11.43mm
Height 11.43mm
Technical
DC Current 9A
Current - Saturation 20A
Max DC Current 9A
DC Resistance (DCR) 9.8mOhm Max
Inductance 6.8μH
Military Standard Not
Current Rating 9A
Depth 15.24mm
Shielding Unshielded
Current Rating (Amps) 9A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 9.8mOhm
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.730Lx0.600W 18.54mmx15.24mm
Series PF0504NL
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 9 Weeks
