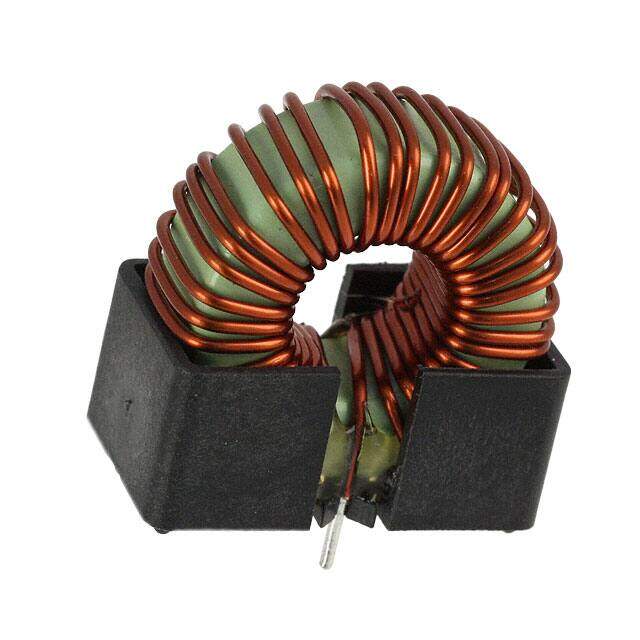

PE-92112KNL
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
PE-KLIP Radial Vertical (Open) 1.300Lx0.700W 33.02mmx17.78mm 100muH
PDF
/
Buying Options
Total Price: USD $4.9
Unit Price: USD $4.9016
≥1 USD $4.9016
≥10 USD $3.9688
≥100 USD $3.527542
≥500 USD $3.33168
≥1000 USD $3.086706
≥3000 USD $3.03769
Inventory: 150
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Radial, Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical (Open)
Terminal Shape WIRE
Number of Pins 2
Shape/Size Description RECTANGULAR PACKAGE
Core Material Ferrite
Technical
Operating Temperature -40°C~130°C
Packaging Tray
Published 2006
Series PE-KLIP
Size / Dimension 1.300Lx0.700W 33.02mmx17.78mm
Tolerance ±20%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Toroidal
HTS Code 8504.50.80.00
Shielding NO
Number of Functions 1
Depth 17.78mm
Current Rating 5A
Military Standard Not
Lead Pitch 12.7mm
Lead Length 3.3mm
Lead Diameter 1.0668 mm
Inductance 100μH
Test Frequency 20kHz
DC Resistance (DCR) 34mOhm Max
Max DC Current 5A
Inductor Application POWER INDUCTOR
Lead/Base Style Radial
Inductance Tolerance 20%
DC Current 5A
RMS Current (Irms) 5A
Dimensions
Height 35.56mm
Height Seated (Max) 1.400 35.56mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
