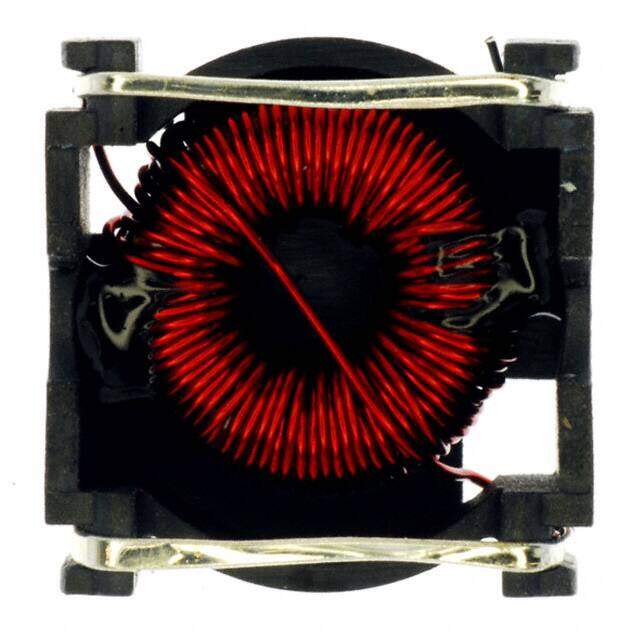

PE-53821S image
Favorite
PE-53821S image
Favorite
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description Nonstandard 0.570Lx0.565W 14.48mmx14.35mm 78muH ±20%
PDF
/
Inventory: 6076
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Contains Lead
RoHS Status Non-RoHS Compliant

Dimensions

Height Seated (Max) 0.360 9.14mm
Height 6.35mm

Technical

Max DC Current 820mA
DC Resistance (DCR) 300mOhm
Inductance 78μH
Current Rating 820mA
Shielding Shielded
HTS Code 8504.50.80.00
Type Toroidal
ECCN Code EAR99
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Tolerance ±20%
Size / Dimension 0.570Lx0.565W 14.48mmx14.35mm
Published 2007
Packaging Bulk
Operating Temperature -40°C~130°C

Physical

Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
