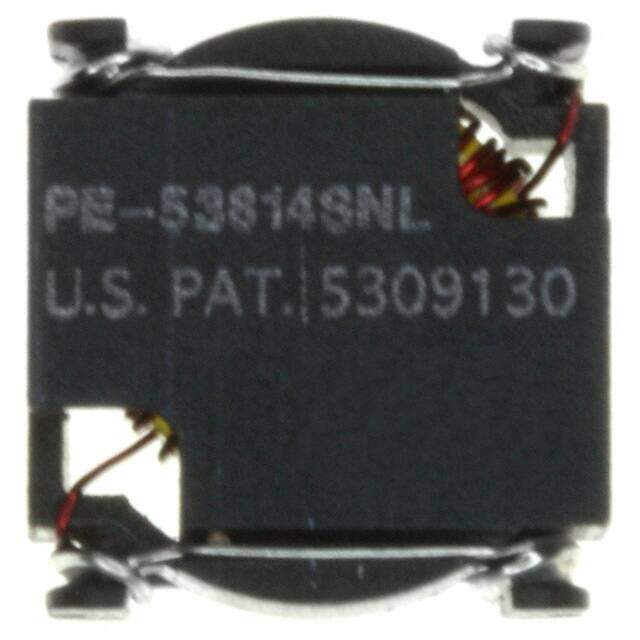

PE-53814SNL image
Favorite
PE-53814SNL image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description Nonstandard 0.440Lx0.435W 11.18mmx11.05mm 39muH ±20%
PDF
/
Buying Options
Total Price: USD $1.44
Unit Price: USD $1.44305
≥1 USD $1.44305
≥10 USD $1.18465
≥100 USD $1.1476
≥500 USD $1.11055
≥1000 USD $1.0735
Inventory: 9006
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 13 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Shape/Size Description RECTANGULAR PACKAGE

Technical

Operating Temperature -40°C~130°C
Packaging Bulk
Published 2008
Size / Dimension 0.440Lx0.435W 11.18mmx11.05mm
Tolerance ±20%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Toroidal
Resistance 300mOhm
HTS Code 8504.50.80.00
Shielding Shielded
Number of Functions 1
Depth 11.05mm
Current Rating 680mA
Military Standard Not
Inductance 39μH
DC Resistance (DCR) 300mOhm
Max DC Current 680mA
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Case/Size Code 4444
DC Current 680mA
Special Feature SIMPLE SWITCHER

Dimensions

Height 9.144mm
Height Seated (Max) 0.360 9.14mm

Compliance

Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
