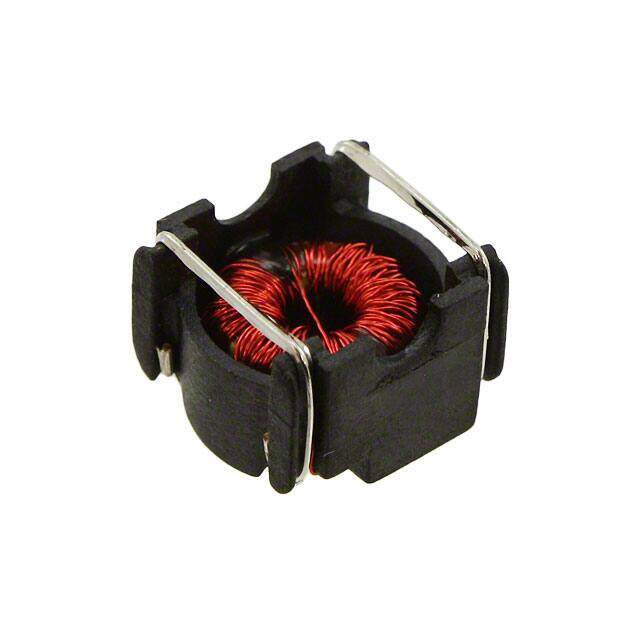

PE-53809SNL
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
Nonstandard 0.440Lx0.435W 11.18mmx11.05mm 256muH ±20%
PDF
/
Buying Options
Total Price: USD $1.9
Unit Price: USD $1.9008
≥1 USD $1.9008
≥10 USD $1.61832
≥100 USD $1.332707
≥500 USD $1.11056
≥1000 USD $1.078818
≥3000 USD $1.015353
Inventory: 710
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Number of Pins 2
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~130°C
Packaging Tube
Published 2008
Size / Dimension 0.440Lx0.435W 11.18mmx11.05mm
Tolerance ±20%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Toroidal
HTS Code 8504.50.80.00
Shielding NO
Number of Functions 1
Depth 11.05mm
Current Rating 250mA
Military Standard Not
Inductance 256μH
DC Resistance (DCR) 2.2Ohm
Max DC Current 250mA
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Case/Size Code 4444
Inductance Tolerance 20%
DC Current 250mA
RMS Current (Irms) 250mA
Series Resistance 2.2Ohm
Special Feature SIMPLE SWITCHER
Dimensions
Height 9.14mm
Height Seated (Max) 0.360 9.14mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
